Описание
Основные характеристики:
Positive and Negative coordinate processing.
With W axis for moving machine head to load high product
Programmable Z axis, 10 step, 99 program storage
Built in 3 axis Linear scale ( 1um or 5um)
Precision co-ordinate table on flat & V type turcide coated guide ways driven by ball screw
Double door and large working tank for ease of loading & unloading of workpiece
Oil level alarm, insufficient liquid level protection;
With the quill running on preloaded cross roller bearing and ball screw for accuracyworking
High speed quill moment with Panasonic AC servo motor, more efficient than DC servo motor.
New generation superfine discharge ciruit for mirror surface
Hand held multi-function remote controller
Reverse servo machining
Automatic carbon deposition detection function, adjusts various processing parameters automatically
Special circuits for deep hole and large area electrode processing
Self-diagnostic trouble shooting with alarm
Automatic lubrication system
Fire extinguisher, Smoke detector alarm
Power efficient high pressure dielectric pump
Technical Parameters:

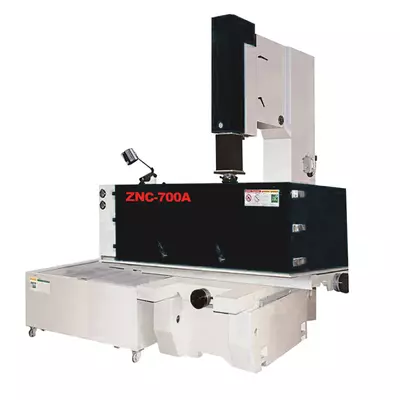

| Модель | Единица | ZNC-550 | ZNC-650 | ZNC-700 | |
| Working table | Mm | 1000*500 | 1000*600 | 1200*650 | |
| Oil groove size ( Inside) | Mm | 1410*810*540 | 1700*1000*600 | 1900*1060*640 | |
| Oil groove size ( Outside) | Mm | 1680*880*550 | 1930*1080*610 | 2140*1150*650 | |
| Height from working table after filled oil | Mm | 450 | 530 | 580 | |
| X travel | Mm | 550 | 650 | 700 | |
| Y travel | Mm | 450 | 550 | 600 | |
| Z travel | Spindle travel | Mm | 250 | 300 | 300 |
| 2nd stage travel | Mm | 300 | 350 | 350 | |
| Distance from spindle to working table | Mm | 640 | 750 | 850 | |
| Maximum working current | A | 75 | 75 | 75 | |
| Max. Processing speed | мм3/мин | ≥500mm3/min | |||
| Min. electrode consumption | ≤0.2% | ≤0.2% | ≤0.2% | ||
| Best Roughness, Ra | Ра | Ra0.4 | Ra0.4 | Ra0.4 | |
| Max.Electrode weight | Kgs | 100 | 150 | 200 | |
| Max. load on working table | Kgs | 1500 | 2000 | 2000 | |
| Machine weight | Kgs | 2150 | 3000 | 3500 | |
| Dimension | Mm | 1900*1560*2300 | 2300*1900*2500 | 2400*1900*2500 | |
Компания и мастерские
ARIS Machinery - это группа с 4 заводами. ARIS имеет около 60000 кв.
мастерская.
Производственное оборудование
Основные части наших машин обрабатываются на станках с ЧПУ. У нас есть портальный
тип фрезерного станка с ЧПУ, вертикальный обрабатывающий центр с ЧПУ, портальный тип фрезерного станка с ЧПУ
шлифовальный станок, станок для лазерной резки с ЧПУ, гибочный станок с ЧПУ, ножницы с ЧПУ
машина.
Испытания и проверки
Все машины будут протестированы перед отправкой.
