Description

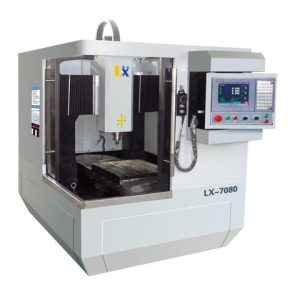

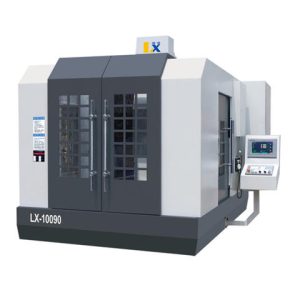

Double Column Machining Center ( Gantry type)
Main Features:
1.Taiwan ball screw and Linear rail
2.Yaskawa or Panasonic servo motor
3.Different control system as option
4.Auto tool Changer as option
Technical parameters:

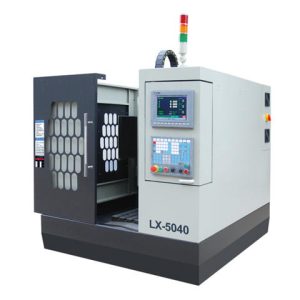

| Model | LX5040 | LX6050 | LX8070 |
| Table size (mm) | 500×400 | 600×500 | 800×700 |
| Stroke(X/Y/Z)(mm) | 500*400*250 | 600*500*260 | 800*700*300 |
| Quick moving speed(mm/min) | 12000 | 12000 | 12000 |
| Max. feeding speed(mm/min) | 6000 | 6000 | 6000 |
| Positioning Accuracy (mm) | 0.008/300 | 0.008/300 | 0.01/300 |
| Repeating Accuracy (mm) | 0.004 | 0.004 | 0.005 |
| Perpendicularity X/Y (mm) | 0.015/300 | 0.015/300 | 0.015/300 |
| Max. load on table(kg) | 300 | 500 | 600 |
| Max. Spindle speed(rpm) | 24000 | 18000/24000 | 18000 |
| Main motor power(kw) | 3.2/4.0 | 4.0/5.5 | 5.5/7.5 |
| Spindle chuck | ER32/BT30 | ER32/BT30 | ER32/ER40/BT30 |
| Servo system | CNC system: LNC/ Syntec/ Fanuc
Servo system: Yaskawa /Panasonic/ Fanuc |
||
| Voltage(V/ Hz) | 3 Phase 380V/50Hz, ( 220V/50hz) | ||
| Dimension(mm) | 1650×1500×1900 | 1950×1800×2300 | 2300×1920×2400 |
| Weight(kg) | 2300 | 2900 | 3500 |
